What Single Electrode Sealing Gland to 8,000 volts does Pyrosales provide?

Pyrosales distribute Conax fittings and glands, we have found that the quality of Conax products have the standards which our clients expect from us. Like the EG Gland, Conax EGT Glands 8000v1 imageelectrically and/or thermally isolate single electrodes, tubes, or temperature sensors for use in vacuum furnaces, liquid level probes, transformers, environmental chambers, power leads and more. These bare electrical feedthroughs also seal against gases and liquids and resist element movements under pressure. The EGT gland differs from the EG gland in that the insulator and sealant are provided as a single continuous Teflon piece to accommodate higher voltage/amperage at lower pressures.

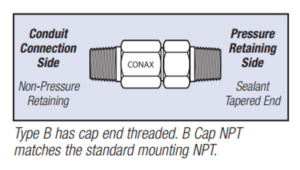

EGT gland bodies with NPT threads or SAE threads are constructed from 303SST standard. Weld-neck style glands are constructed from 316LSST standard. Caps and followers for all styles are constructed from 303SST standard. Many optional materials are also available. Cap Style A offers a mounting thread only. Cap Style B provides threading on both ends for attachment to conduit or terminal heads. Alternative sealant materials are available.

8000v2 image

8000v3 image



Conductors are available in Copper, Nickel and 303SST. Use of Nickel rather than Copper is recommended in oxidizing atmospheres. For further information on conductor selection, Custom conductors, such as nickel-plated copper, are available. Please contact us for more information.
• Temperature Range: -300˚ F to +450˚ F (-185˚ C to +232˚ C)
• Pressure Range: Vacuum to 2,500 PSIG (170 bar) – see Pressure Ratings in Specifications Chart.
• Voltage to 8000 VDC
• Amperage to 525 amp
• Supplied with or without conductor

Accessories
The replaceable sealant permits repeated use of the same fitting. Electrodes can be easily assembled or replaced in the field. To replace the sealant or element, simply loosen the cap, replace the necessary items, re-lubricate and re-torque the cap. Glands are supplied factory lubricated. When reused, the glands should be re-lubricated to maintain the published torque and pressure ratings. If glands are cleaned prior to assembly, they should be re-lubricated. On weld mount models, the heat from the welding process will destroy the lubricant. These models must also be re-lubricated prior to use. Contact us for more information on the lubrication kit.

8000v4 image

2000v5 image

8000v5 image

8000v6 image

8000v7 image

8000v8 image



Pyrosales has extensive knowledge and experience in temperature management and process control. We provide advice, design, repair, and fabrication to our clients on a wide range of industries, uses, and capabilities of temperature management. Contact us at anytime on 1300737976 or CLICK HERE FOR A QUOTE
