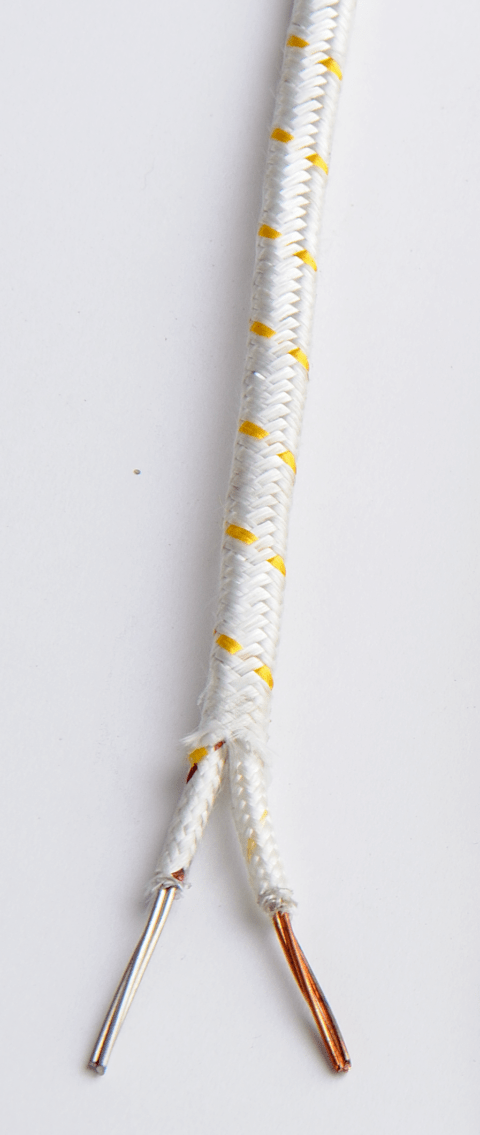

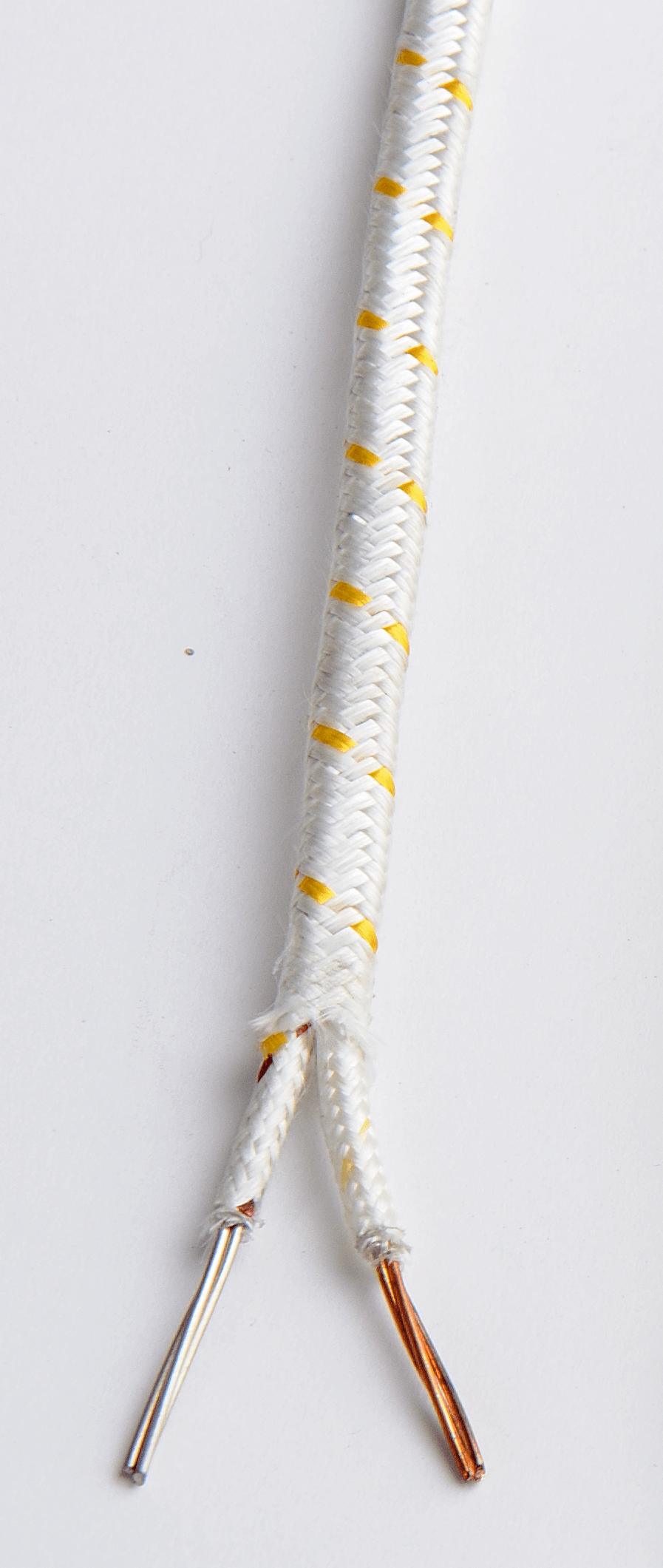

High Temperature Vitreous Silica Braided Thermocouple Wire

Part no. ENQUIRE

To order or enquire about this product, please contact us by clicking on 'Enquire now' below, or call 1300 737 976. You can also view the brochure/datasheet below for more information.

Enquire now

High temperature silica fibres are braided as the insulation on the conductors AND the duplex. Because of the braids on both the jacket and each conductor, the yarn retains its flexibility after exposure to extremely high temperatures.



 Resistance Properties

  • Moisture- FAIR
  • Chemical- GOOD
  • Abrasion- FAIR

Features and Benefits
  • Continuous temperature rating: 980°C
  • Single reading 1095°C
  • Additional abrasion resistance with optional stainless steel and alloy 600 wire overbraids.
  • Custom constructions available.

Applications

  • Furnace survey work
  • Heat treating load thermocouples
