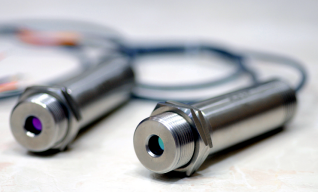

TL8 Infrared Pyrometer

TL8 Infrared Pyrometer

To order or enquire about this product, please contact us by clicking on "Enquire now" below, or call 1300 737 976. You can also view see above for datasheets/brochures for more information.ENQUIRE NOW



TL-8 is a rugged and compact IR Pyrometer of class T series especially designed for low temperature application needs, ranging from 0°C…500°C.The highly recommended and OEM favourite model is perfectly suited for demanding industrial environment because of the compact size, small housing dimensions , and low maintenance. TL-8 model of T series is particularly a tough competitor due to its high performance at very attractive economy range. TL-8 model can replace the already installed contact probes with the K type or J type thermocouple output along with standard 0..5V, 4…20mA Analog outputs TL-8 IR pyrometer comes along with digital TTL Output and Alarm Output for variety of applications in process industries.

  • Temperature range
    • 0°C – 500°C
  • Spectral range 8 μm to 14 μm
  • Analog output 4…20mA, 0..20mA, 0..10V
  • Type K/J thermocouple output
  • TTL output
  • 3m connection cable
  • Calibration certificate/Software/Operation manual

Brochure & Data Sheets
