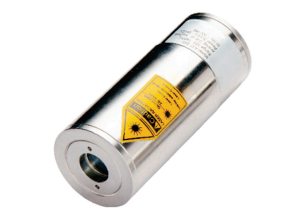

IR-CAST 2C Infrared Pyrometer

IR-CAST 2C Infrared Pyrometer

To order or enquire about this product, please contact us by clicking on "Enquire now" below, or call 1300 737 976. You can also view see above for datasheets/brochures for more information.ENQUIRE NOW




IR-CAST 2C is a highly accurate digital two-colour Rectangular measuring field IR pyrometer for non-contact temperature measurement specially used in foundries for molten metal. The Pyrometer measures the temperature of an object by calculating the ratio of the energies at two different wavelength bands. The ratio technique eliminates and reduces errors in temperature measurement caused by factors such as dust, vapour, or smoke etc. If the target is within this rectangular area, it gives an accurate temperature reading even when liquid moves within this area.

  • Rectangular field of view for molten metal.
  • Wide temperature ranges from 700°C to 1700°C.
  • Spectral range 0.7 μm….1.15 μm
  • Fast response time within milliseconds
  • Two Colour model
  • Through the lens view finder sighting options
  • Analog output options available like 0…20mA, 4…20mA and 0…10V
  • USB2.0 Digital output and RS-232/RS-485 Serial interface
  • User friendly PC software for communication
