Testo 875 range

Testo 875 range

To order or enquire about this product, please contact us by clicking on "Enquire now" below, or call 1300 737 976. You can also view see above for datasheets/brochures for more information.ENQUIRE NOW

SKU testo875 Categories ,

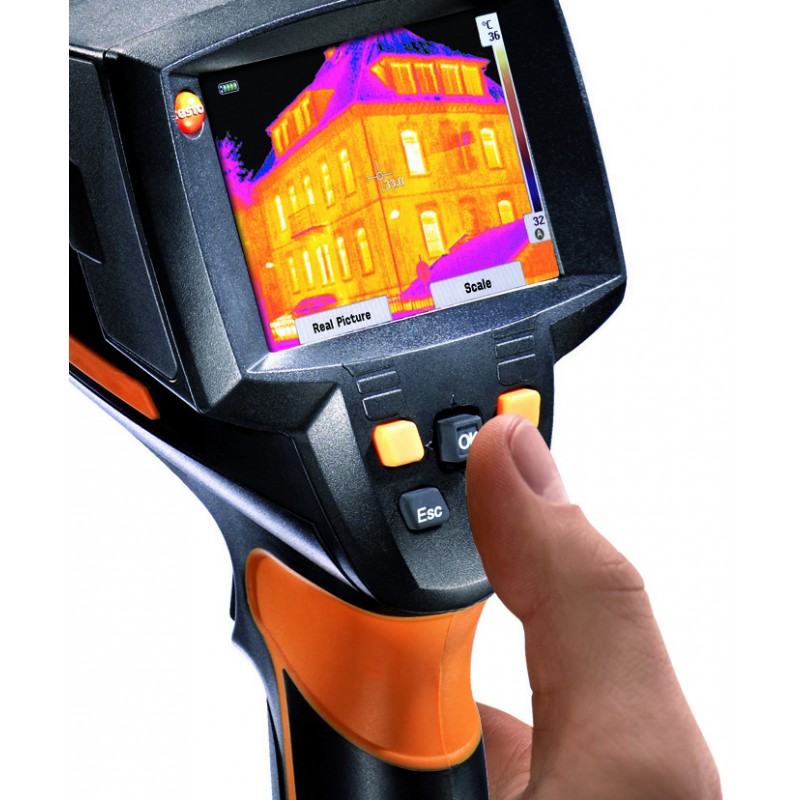

The thermal imager testo 875 quickly and reliably detects anomalies and weak spots in materials and components. Thanks to an imaging process, energy losses and cold bridges as well as damage or overheating in industrial systems are detected without contact. Whereas with other methods, cable or pipeline systems must be exposed over a large area, with the thermal imager testo 875, a single glance is enough.

Features of 875-1 (include, but not limited to):

  • Infrared Resolution: 160 x 120 pixels
  • Measuring Range: 1: -20 to +100°C | 0 to +280°C (switchable)
  • Emissivity / reflected temperature: 0.01 to 1 / manual
  • Accuracy: ±2 °C, ±2 % of measured value
  • Image display: 3.5″ LCD touchscreen with 320 x 240 pixels
Features of 875-1i and 875-2 (include all features above, plus):
  • Image size/ min. focus distance: 640 x 480 pixels / 0.4m
  • Thermal sensitivity: <50mK at +30°C
  • Measuring Range: -30°C to +100°C | 0°C to +350°C (switchable)
  • Integrated digital camera
  • Class 2 Laser marker

Applications (not limited to):

  • Detect energy loss in a building’s heating and air conditioning systems
  • Investigation of thermal bridges and air leakages
  • Structual defects
  • Provide insights for underfloor heating
  • Detecting hot spots

Brochure & Data Sheets
