PPC-D / PPC-D+ Series

PPC-D / PPC-D+ Series

To order or enquire about this product, please contact us by clicking on "Enquire now" below, or call 1300 737 976. You can also view see above for datasheets/brochures for more information.ENQUIRE NOW

Share

Description

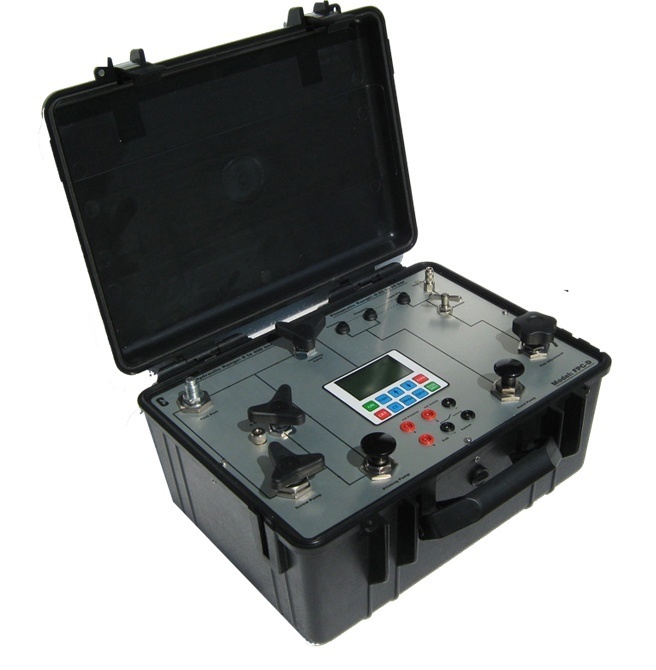

PPC-D: Portable Dual Pressure Calibrator. (Pneumatic and Hydraulic)
PPC-D+: Portable Precision Dual Pressure Calibrator. (Pneumatic and Hydraulic)

Ideal lab/ site tool for checking and calibration of Low Ranges of Pressure/ Differential Pressure Gauges/ Transmitters/ Indicators, Reciever Gauges, Control Valves, Pressure Transducers/ Loops etc. – in Industrial and Marine Applications.

Features of both include:

  • Several Models/ Variants
    – Portable/ Compact
    – Basic/ Advanced Models with High/ Very High Accuracies
    – Lab, Field and Site Calibration Standards
  • Dual Ranges : -0.85 Bar Vacuum to 20 Bar (Pneumatic) & 0 to 400 Bar (Hydraulic)
  • Accuracy : ±0.05% F.S. (PPC-D) | ±0.025% F.S. (PPC-D+)
  • Automatic Temperature Compensation (0 to 50°C)
  • Light Weight & Compact: Housed in Rugged Carry Case
  • Large Graphic Display
  • Touch Membrane Keypad
  • Selectable Engineering Pressure Units
  • DC Current Measurement : 50 mA (Active) & 25 mA (Passive)
  • Switch Test capability & Zero Offset facility
  • Audio & Visual Alarms for Over Pressure
  • Pressure Transducer – all Media compatible with SS316
  • Rechargeable Battery with ‘Low Battery’ indication
  • Digital Pressure Indicator with 2 integral / built-in Pumps with Fine Adjustment Vernier
