Description

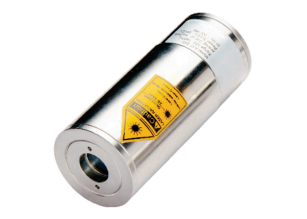

AL30 Digital Infrared Pyrometers with Thermopile Sensors provides the advantage of noncontact temperature measurement of non-metallic surfaces, painted, coated, or anodized metals etc. AL30 IR Pyrometer is designed for easy integration into standard 4 wire system. This format combines the high accuracy of digital signal processing with the simple connection. AL30 Infrared Pyrometer is used for target temperature ranging from 0°C to 1000°C. The electronic assembly is protected by IP65 rugged stainless-steel housing. AL30 IR Thermometer is provided with USB 2.0 connector with cable. The Pyrometer can be powered through USB port. In this case no external power supply is required (24V DC requires for operation of Analog output laser on and RS-232 / RS-485 output).

• Highly Accurate due to digital linearization of the output
• Temperature ranges from 0°C….1000°C
• Spectral range 8 µm…14 µm
• Four wire form with Analog output 4…20mA or 0…20mA or 0…10V
• Serial communication RS-232/RS-485
• Fast response time of 60 ms
• Very good stability
• Laser Targeting for precision targeting.
• User friendly Software.
• Pyrometer with Laser pilot light(PL)
• Analog output 4…20mA, 0..20mA, 0..10V
• USB 2.0 Digital output, USB Cable
• Digital Interface RS-232 / RS-485(user selectable)
• 5 mtr long connection cable with connector
• 1.5 mtr. Communication Cable
• Calibration certificate, Software & Operation manual
