PPC-H / PPC-H+ Series

Part no. ENQUIRE

To order or enquire about this product, please contact us by clicking on 'Enquire now' below, or call 1300 737 976. You can also view the brochure/datasheet below for more information.

Enquire now

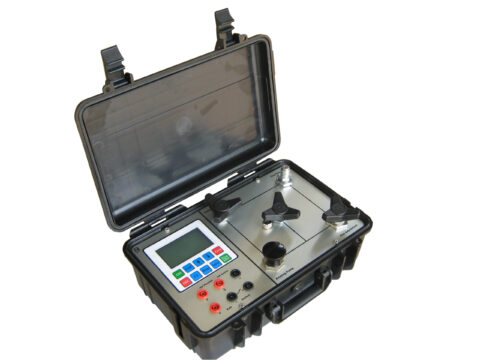

Portable Hydraulic Pressure Calibrators. Ideal Lab/ Site tool for checking and Calibraiton of Pressure/ Differential Pressure Gauges/ Switches/ Transmitters/ Receiver Gauges/ Loops etc. – in Industrial and Marine applications.

PPC-H: Portable Hydraulic Pressure Calibrator.
PPC-H+: Portable Precision Hydraulic Pressure Calibrator.

Features include:

  • Several models/ variants
    – Portable/ Compact
    – Basic/ Advanced models with High/ High Accuracies
    – Lab, Field and Site Calibration Standards
  • Ranges : 0 to 200 / 400 Bar
  • Accuracy : ±0.05% F.S (PPC-H) | ±0.025% F.S (PPC-H+)
  • Automatic Temperature Compensation (0 to 50°C)
  • Light Weight & Compact
  • Trendy, Elegant ‘Rugged’ Carry Case – Truly Portable
  • Large Graphic Display
  • Touch Membrane Keypad
  • Selectable Pressure Units
  • DC Current Measurement : 50 mA (Active) & 25 mA (Passive)
  • Switch Test capability & Zero Offset facility
  • Audio & Visual Alarms for Over Pressure
  • Pressure Transducer – all Media compatible with SS316
  • Rechargeable Battery with ‘Low Battery’ indication
  • Built-in Priming Pump & Ram Screw Pump with Fine Adjustment Vernier
